New Discovery Trailer Pre-Order Prices

Discovery Trailers offers the following Trailer Types. All trailers can be custom build to your specifications by selecting any of the Upgrade Options

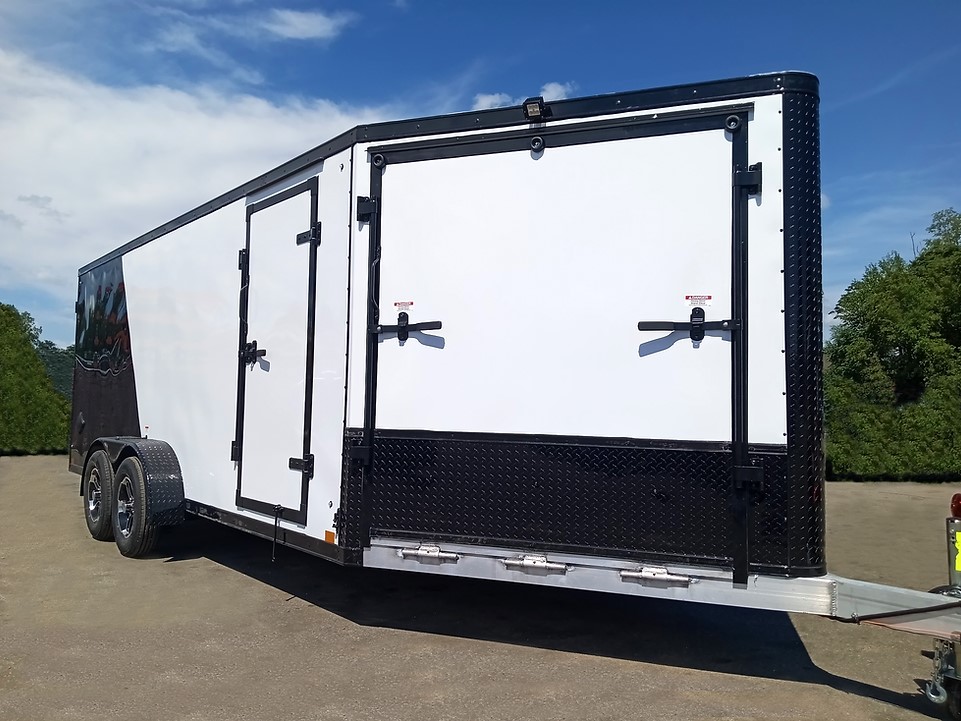

  • ENCLOSED SNOWMOBILE TRAILERS (7' Wide - 7.5' Wide)



  • ENCLOSED GOOSENECK TRAILERS (8.5' Wide)

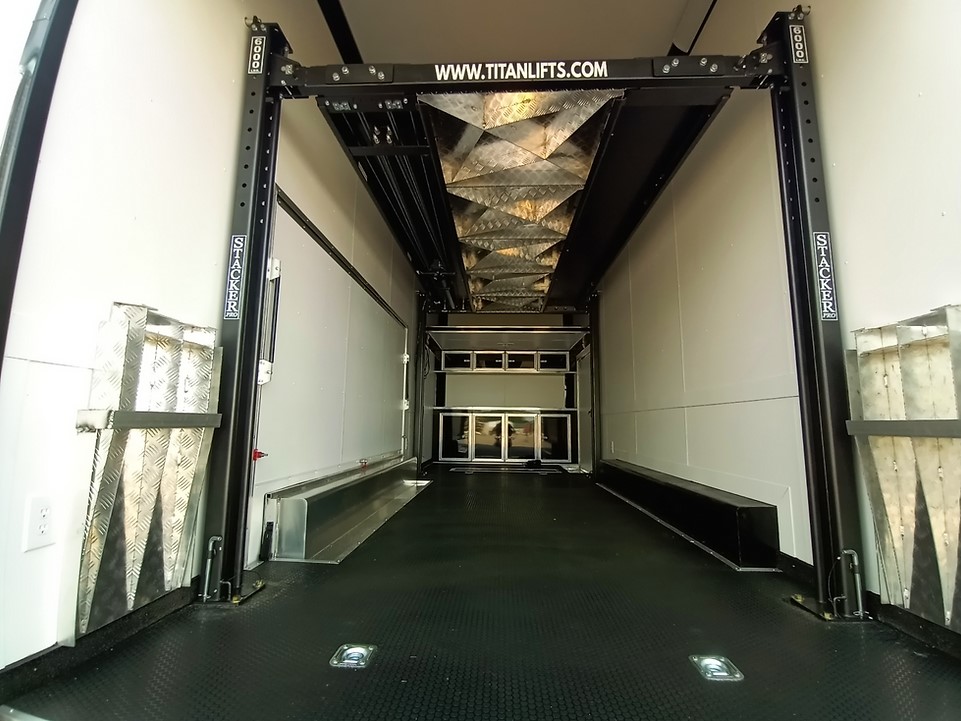

  • ENCLOSED STACKER TRAILERS (8.5' Wide)
    • Stacker (Steel Frame) - Call for details and pricing.



See below for base trailer prices for all Discovery Brand Trailers offered. All trailers can be ordered with upgrades with a 6 to 8 week lead time.

UPGRADE PRICES     COLOR OPTIONS

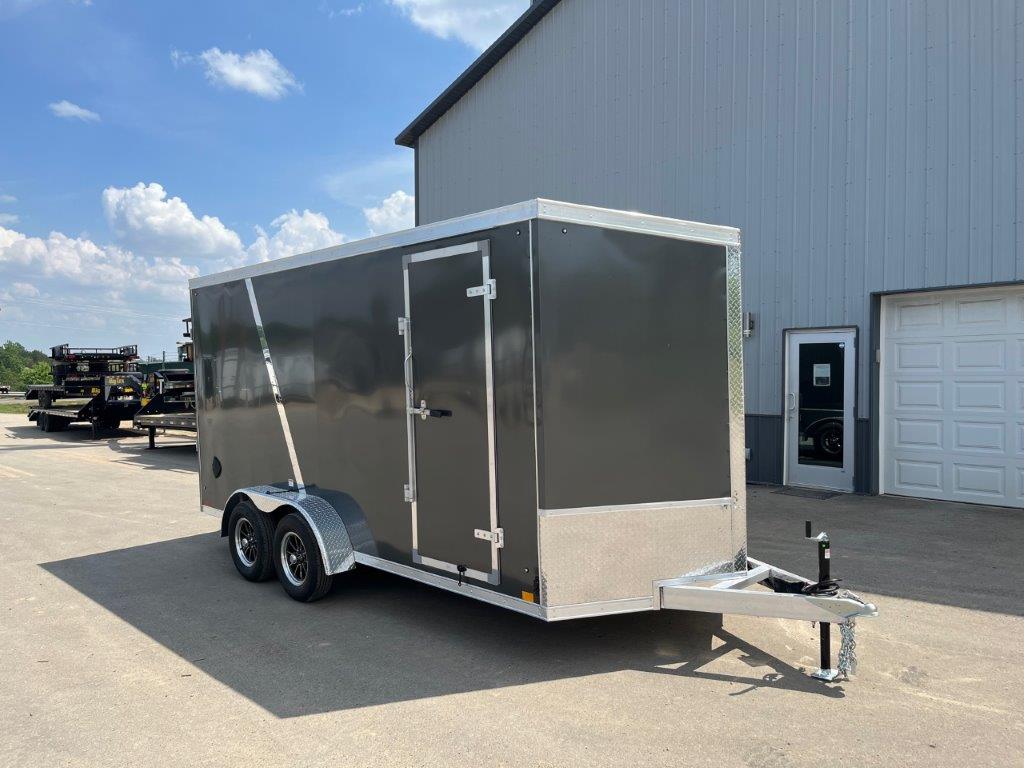

New Discovery Rover ET Enclosed Trailers (Steel Frame)

Shown with Options: 2 Tone with Bright Divider

MODEL                         TRAILER SIZE                     PRICE

DTH46SA            4x6-48" Interior Height-Spring #2000          $3,595

DTH48SA            4x8-48" Interior Height-Spring #2000          $3,995

                            *Rear Door Opening Height - 42" W x 42" H

DTH58SA            5x8-66" Interior Height-Spring-#3500          $4,295

DTH510SA          5x10-66" Interior Height-Spring-#3500        $4,695

                             *Rear Door Opening Height - 54" W x 60" H

DTH610SA          6x10-72" Interior Height-Spring #3500        $5,295

DTH612SA          6x12-72" Interior Height-Spring #3500        $5,095 (On Special)

DTH612TA35      6x12-72" Interior Height-Spring #3500x2     $7,295

DTH614SA          6x14-72" Interior Height-Spring #3500         $6,195

DTH614TA35      6x14-72" Interior Height-Spring #3500x2     $7,795

                             *Rear Door Opening Height - 66" W x 66" H

DTH712SAE        7x12-72" Interior Height-Spring #3500        $6,295

DTH712TA35      7x12-72" Interior Height-Spring #3500x2     $7,595

DTH714TA35      7x14-72" Interior Height-Spring #3500x2     $7,395 (On Special)

DTH716TA35      7x16-72" Interior Height-Spring #3500x2     $7,795 (On Special)

DTH718TA35      7x18-72" Interior Height-Spring #3500x2     $9,195

DTH720TA35      7x20-72" Interior Height-Spring #3500x2      $9,595

                             *Rear Door Opening Height - 78" W x 66" H



* Wisconsin Sales Tax of 5.5% must be added to each price.



STANDARD FEATURES
  • 2" x 3" Tube Steel Main Rails (5&6 wide SA)
  • 2" x 4" Tube Steel Main Rails (6 wide TA)
  • 2" x 4" Tube Steel Main Rails (7 wide)
  • Steel Tube Wall Posts (24" O/C)
  • Steel Tube Roof Bows (24" O/C)
  • Preformed Crossmembers (24" O/C)
  • Dexter Spring Axle/s w/ 4" Drop
  • Wide Track Axle/s on 7 Wides
  • ST205/75R15"Radials on Silver Mod Wheels
  • 2" Coupler on SA Models
  • 2-5/16" Coupler on TA Models (and 7 wide SAE)
  • 24" Slanted or Straight Wedge Front
  • .030 Semi-Screwless Exterior  (Screwed Seams)
  • Painted Screws (Blk, Wht, Red, Charcoal & Zinc)
  • Brite Aluminum Nose on Wedge
  • Color Matched Rear Corners
  • Painted Tongue / Rear Sill-Black
  • 1-1/2" Top and Bottom Trim
  • ATP Aluminum Fenders
  • Plastic Flo-Thru Sidewall Vents
  • Framed for Roof Vent
  • Galvalume Roof
  • 16" Stone Guard
  • 3/4" Drymax Flooring
  • 3/8" Drymax Wall Liner
  • 32" Side Door on 6 & 7 Wide's (Alum. Framed)
  • No Side Door on 5 Wide's
  • Double Doors or Ramp Door on 6 & 7 Wide's
  • Ramp Door Capacity (1500# for 6' wide, 2500# for 7' wide)
  • Single Rear Door or Ramp on 5 Wide's
  • Single Rear Door on 4 Wide's
  • Zinc Door Hardware
  • Aluminum Door Hold Backs
  • L.E.D. Taillights & Bullet Marker Lights (4/Side)
  • 12V L.E.D. Dome Lights w/ Switch (1-SA / 2-TA)
  • 6" Barrier Tape
  • D.O.T / C.S.A Approved Safety Equipment
  • 3 Year Structural Warranty
  • 1 Year Limited Warranty




New Discovery Rover SE Enclosed Trailers (Steel Frame)

Shown with Options: Black Rims
MODEL                         TRAILER SIZE                      PRICE

DRSE46SA           4x6-48" Interior Height-Spring #2000          $3,795

DRSE48SA           4x8-48" Interior Height-Spring #2000          $4,195

                             *Rear Door Opening = 42" W x 42" H

DRSE58SA           5x8-66" Interior Height-Spring-#3500          $4,495

DRSE510SA         5x10-66" Interior Height-Spring-#3500        $4,895

                             *Rear Door Opening = 54" W x 60" H

DRSE610SA         6x10-72" Interior Height-Spring #3500        $5,595

DRSE612SA         6x12-72" Interior Height-Spring #3500        $6,095

DRSE612TA35     6x12-72" Interior Height-Spring #3500x2     $7,595

DRSE614SA         6x14-72" Interior Height-Spring #3500        $6,495

DRSE614TA35     6x14-72" Interior Height-Spring #3500x2     $8,095

                              *Rear Door Opening = 66" W x 66" H

DRSE712SAE       7x12-72" Interior Height-Spring #3500        $7,095

DRSE712TA35     7x12-72" Interior Height-Spring #3500x2    $8,095

DRSE714TA35     7x14-72" Interior Height-Spring #3500x2    $8,695

DRSE716TA35     7x16-72" Interior Height-Spring #3500x2    $9,195

DRSE718TA35     7x18-72" Interior Height-Spring #3500x2    $9,695

DRSE720TA35     7x20-72" Interior Height-Spring #3500x2   $10,195

                             *Rear Door Opening = 78" W x 66" H



* Wisconsin Sales Tax of 5.5% must be added to each price.



STANDARD FEATURES

  • 2" x 3" Tube Steel Main Rails (4,5,&6 wide SA)
  • 2" x 4" Tube Steel Main Rails (6 wide TA)
  • 2" x 6" Tube Steel Main Rails (7 wide)
  • Steel Tube Wall Posts (16" O/C)
  • Steel Tube Roof Bows (24" O/C)
  • Preformed Crossmembers (16" O/C)
  • Dexter Spring Axle/s w/ 4" Drop
  • Wide Track Axle/s on 7 Wides
  • ST205/75R15"Radials on Silver Mod Wheels
  • 2" Coupler on SA Models
  • 2-5/16" Coupler on TA Models (and 7 wide SAE)
  • 24" Slanted or Straight Wedge Front
  • .030 Screwless Exterior
  • Brite Aluminum Nose on Wedge
  • Color Matched Rear Corners
  • Painted Tongue / Rear Sill-Black
  • 3" Top &  Bottom Trim
  • ATP Aluminum Fenders
  • Roof Vent or Flo-Thru Sidewall Vents
  • Framed for Roof Vent
  • 1 Pc. Aluminum Roof
  • 24" Stone Guard
  • 3/4" Drymax Flooring
  • 3/8" Drymax Wall Liner
  • 32" Side Door on 6 & 7 Wides
  • No Side Door on 5 Wides
  • Double Doors or Ramp Door on 6 & 7 Wides
  • Ramp Door Capacity (1500# for 6' wide, 2500# for 7' wide)
  • Single Rear Door or Ramp on 5 Wides
  • Single Rear Door on 4 wides
  • Zinc Door Hardware
  • Aluminum Framed Doors
  • Aluminum Door Hold Backs
  • L.E.D. Taillights & Bullet Marker Lights (4/Side)
  • 12V L.E.D. Dome Lights w/ Switch (1-SA / 2-TA)
  • 6" Barrier Tape
  • D.O.T / C.S.A Approved Safety Equipment
  • 3 Year Structural Warranty
  • 1 Year Limited Warranty




New Discovery Challenger ET Car Hauler Enclosed Trailers (Steel Frame)

Shown with Options: 5' V with Front Ramp Door and Two Tone Exterior with Bright Divider
MODEL                             TRAILER SIZE                  PRICE

DCHET8.5x14TA35          8.5x14-80" Interior-3500# x 2          $9,195

DCHET8.5x16TA35          8.5x16-80" Interior-3500# x 2          $9,595

DCHET8.5x18TA35          8.5x18-80" Interior-3500# x 2         $10,095

DCHET8.5x20TA35          8.5x20-80" Interior-3500# x 2         $10,595

DCHET8.5x22TA35          8.5x22-80" Interior-3500# x 2         $11,095

DCHET8.5x24TA35          8.5x24-80" Interior-3500# x 2         $11,595

           NOTE: UPGRADED TO 16" OC WALLS ON 26' AND ABOVE

DCHET8.5x26TA52          8.5x26-80" Interior-5200# x 2         $13,195

DCHET8.5x28TA52          8.5x28-80" Interior-5200# x 2         $13,795

DCHET8.5x30TA52          8.5x30-80" Interior-5200# x 2         $14,295

DCHET8.5x32TA52          8.5x32-80" Interior-5200# x 2         $14,795

                 *Ramp Door Opening = 92" W x 79" H



* Wisconsin Sales Tax of 5.5% must be added to each price.



STANDARD FEATURES
  • 2" x 6" Tube Steel Main Rails (7G on 26' & Above)
  • Steel Tube Wall Posts (24" O/C)
  • Steel Tube Roof Bows (24" O/C)
  • Preformed Crossmembers (24" O/C)
  • 16" O/C Crossmembers on TA52 Models
  • 54" Triple Tube Tongue
  • Ramp Door (4000# Capacity)
  • 4' Beavertail (3' on 14' & 16' Models)
  • Dexter Spring Axle/s w/ 4" Drop
  • ST205/75R15" Radials on Silver Mod Wheels
  • ST225/75R15" Radials on Silver Mod Wheels (TA52)
  • 2-5/16" Coupler
  • 24" Slanted or Straight Wedge Front
  • .030 Semi-Screwless Exterior  (Screwed Seams)
  • Painted Screws (Blk, Wht, Red, Charcoal & Zinc)
  • Brite Aluminum Nose on Wedge
  • Color Matched Rear Corners
  • Painted Tongue / Rear Sill-Black
  • 1-1/2" Top & Bottom Trim
  • ATP Aluminum Fenders
  • Plastic Flo-Thru Sidewall Vents
  • Framed for Roof Vent
  • Galvalume Roof
  • 16" Stone Guard
  • 3/4" Drymax Flooring
  • 3/8" Drymax Wall Liner
  • 48" Side Door w/ Stepwell (Alum. Framed)
  • Zinc Door Hardware
  • Aluminum Door Hold Backs
  • L.E.D. Taillights & Bullet Marker Lights (4/Side)
  • 2-12V L.E.D. Dome Lights w/ Switch
  • 4-5000# Recessed D-Rings
  • 7 Way Electrical Plug
  • 6" Barrier Tape
  • D.O.T / C.S.A Approved Safety Equipment
  • 3 Year Structural Warranty
  • 1 Year Limited Warranty




New Discovery Challenger SE Car Hauler Enclosed Trailers (Steel Frame)

MODEL                           TRAILER SIZE                     PRICE

DCH8.5x14TA35              8.5x14-80" Interior-3500# x 2          $9,595

DCH8.5x16TA35              8.5x16-80" Interior-3500# x 2         $10,095

DCH8.5x18TA35              8.5x18-80" Interior-3500# x 2         $10,695

DCH8.5x20TA35              8.5x20-80" Interior-3500# x 2         $11,195

DCH8.5x22TA35              8.5x22-80" Interior-3500# x 2         $11,895

DCH8.5x24TA35              8.5x24-80" Interior-3500# x 2         $12,395

DCH8.5x26TA52              8.5x26-80" Interior-5200# x 2         $13,595

DCH8.5x28TA52              8.5x28-80" Interior-5200# x 2         $14,195

DCH8.5x30TA52              8.5x30-80" Interior-5200# x 2         $14,795

DCH8.5x32TA52              8.5x32-80" Interior-5200# x 2         $15,295

DCH8.5x34TA52              8.5x34-80" Interior-5200# x 2         $15,795

                     *Ramp Door Opening = 92" W x 79" H



* Wisconsin Sales Tax of 5.5% must be added to each price.



STANDARD FEATURES
  • 2" x 6" Tube Steel Main Rails (7G on 26' & Above)
  • Steel Tube Wall Posts (16" O/C)
  • Steel Tube Roof Bows (24" O/C)
  • Preformed Crossmembers (16" O/C)
  • 54" Triple Tube Tongue
  • Ramp Door (4000# Capacity)
  • 4' Beavertail (3' on 14' & 16' Models)
  • 6' Beavertail on 26' Models
  • 8' Beavertail on 28'-32' Models
  • Dexter Spring Axle/s w/ 4" Drop
  • ST205/75R15" Radials on Silver Mod Wheels
  • ST225/75R15" Radials on Silver Mod Wheels (TA52)
  • 2-5/16" Coupler
  • 24" Slanted or Straight Wedge Front
  • .030 Screwless Exterior
  • Brite Aluminum Nose on Wedge
  • Color Matched Rear Corners
  • Painted Tongue / Rear Sill-Black
  • 3" Top & Bottom Trim
  • ATP Aluminum Fenders
  • Plastic Flo-Thru Sidewall Vents
  • Framed for Roof Vent
  • 1 Pc. Aluminum Roof (.025)
  • 24" Stone Guard
  • 3/4" Drymax Flooring
  • 3/8" Drymax Wall Liner
  • 48" Side Door w/ Stepwell (Alum Framed)
  • Zinc Door Hardware
  • Aluminum Door Holdbacks
  • L.E.D. Taillights & Bullet Marker Lights (4/Side)
  • 2-12V L.E.D. Dome Lights w/ Switch
  • 4-5000# Recessed D-Rings
  • 7 Way Electrical Plug
  • 6" Barrier Tape
  • D.O.T / C.S.A Approved Safety Equipment
  • 3 Year Structural Warranty
  • 1 Year Limited Warranty




New Discovery Gooseneck Enclosed Trailers (Steel Frame)

Shown with Options: Access Doors, Awnings, Side Lights, RV Door, Generator Hatch, and Other Options.
MODEL                            TRAILER SIZE                    PRICE

DCGN8.5x22TA52          8.5x22-78" Interior-5200# x 2            $20,395

DCGN8.5x24TA52          8.5x24-78" Interior-5200# x 2            $20,895

DCGN8.5x26TA52          8.5x26-78" Interior-5200# x 2            $21,495

DCGN8.5x28TA52          8.5x28-78" Interior-5200# x 2            $22,295

DCGN8.5x30TA52          8.5x30-78" Interior-5200# x 2            $22,695

DCGN8.5x32TA52          8.5x32-78" Interior-5200# x 2            $23,495

DCGN8.5x34TA52          8.5x34-78" Interior-5200# x 2            $23,995

DCGN8.5x36TA52          8.5x36-78" Interior-5200# x 2            $24,695

DCGN8.5x38TA60          8.5x38-78" Interior-6000# x 2            $26,495

DCGN8.5x40TA60          8.5x40-78" Interior-6000# x 2            $26,995

DCGN8.5x42TTA60        8.5x42-78" Interior-6000# x 3            $30,295

DCGN8.5x44TTA60        8.5x44-78" Interior-6000# x 3            $31,095

DCGN8.5x46TTA70        8.5x46-78" Interior-7000# x 3            $32,595

DCGN8.5x48TTA70        8.5x48-78" Interior-7000# x 3            $33,795

DCGN8.5x50TTA70        8.5x50-78" Interior-7000# x 3            $34,995

                              *Rear Door Opening = 92" W x 79" H

                    Note: Total length of Trailer Includes 8' Upper Deck

                              TA = Tandem Axle    TAA = Triple Axle



* Wisconsin Sales Tax of 5.5% must be added to each price.



STANDARD FEATURES
  • 4"x8" Tube Main Frame (All Sizes)
  • Steel Tube Wall Posts (16" O/C)
  • Steel Tube Roof Bows (16" O/C)
  • Crossmembers (16"O/C)
  • Flat Top w/ Tapered Side Upper Deck
  • Cast Aluminum Front & Rear Corners
  • Gooseneck Coupler OR Fifthwheel
  • Dual Post 2-Speed Landing Gear
  • 5000# Ramp Door w/ Beavertail
  • Dexter Torsion Axles w/ E-Z Lube Hubs
  • All Wheel Electric Brakes w/ Break-Away
  • Radial Tires on Silver Modular Steel Wheels
  • .030 Aluminum Exterior w/ Screwed Seams
  • Brite Front Vertical Corners
  • Brite Insert Between Front Corner Castings
  • 1 Piece Aluminum Roof
  • 3" Top & Bottom Trim w/ Cast Rear Corners
  • Flo-Thru Vents
  • Framed for Roof Vent
  • 3/8" Drymax Interior Walls
  • 3/4" Drymax Floor
  • 48" Side Door w/ Stepwell (Alum. Framed)
  • 24"x36" ATP Baggage Door in Stoneguard
  • Zinc Door Hardware
  • Aluminum Door Holdback
  • Grab Handle on Side Door & Ramp Door
  • ATP Aluminum Exterior Fenders
  • 2-12V L.E.D. Interior Lights w/ 1 Switch
  • L.E.D.  Strip Tail & Clearance Lights (7/Side)
  • L.E.D. Mid-Ship Turn Signals
  • 6" Barrier Tape
  • D.O.T. / C.S.A. Approved Safety Equipment
  • 7 Way Electrical Plug
  • 3 Year Structural Warranty
  • 1 Year Limited Warranty




New Discovery Endeavor Aluminum Cargo Enclosed Trailers (Aluminum Frame)

Shown with Options: Two Tone Exterior with Bright Divider
MODEL                          TRAILER SIZE                    PRICE

DMA58SA             5x8-60" Interior Height-Spring-#3500        $4,895

DMA510SA           5x10-60" Interior Height-Spring-#3500      $5,295

                               *Rear Door Opening = 54" W x 54" H

DMA610SA           6x10-72" Interior Height-Spring #3500      $5,995

DMA612SA           6x12-72" Interior Height-Spring #3500      $6,495

DMA614SA           6x14-72" Interior Height-Spring #3500      $6,995

DMA612TA35       6x12-72" Interior Height-Spring #3500x2   $8,195

DMA614TA35       6x14-72" Interior Height-Spring #3500x2   $8,695

                               *Rear Door Opening = 66" W x 66" H

DMA712SAE         7x12-72" Interior Height-Spring #3500      $7,495

DMA712TA35       7x12-72" Interior Height-Spring #3500x2   $8,595

DMA714TA35       7x14-72" Interior Height-Spring #3500x2   $9,195

DMA716TA35       7x16-72" Interior Height-Spring #3500x2   $9,695

DMA718TA35       7x18-72" Interior Height-Spring #3500x2  $10,195

DMA720TA35       7x20-72" Interior Height-Spring #3500x2  $10,795

                               *Rear Door Opening = 78" W x 66" H



* Wisconsin Sales Tax of 5.5% must be added to each price.



STANDARD FEATURES
  • All Aluminum Tube Frame Construction
  • 2" x 3" Aluminum Tube Main Frame on 5' & 6' SA
  • 2" x 4" Aluminum Tube Main Frame on 6' TA
  • 2"x 5" Double Hollow Tube Main Frame on 7 Wide
  • Aluminum Tube Wall Posts (16" O/C)
  • Aluminum Tube Roof Bows (24" O/C)
  • Aluminum I-Beam Crossmembers (24" O/C)
  • Dexter Spring Axle/s w/ 4" Drop
  • Wide Track Axle/s on 7 Wides
  • ST205/75R15"Radials on Aluminum Wheels
  • 2" Coupler on SA Models
  • 2-5/16" Coupler on TA Models (and 7 wide SAE)
  • 24" Slanted or Straight Wedge Front
  • .030 Screwless Exterior
  • Brite Aluminum Nose on Wedge
  • Color Matched Rear Corners
  • 3" Top &  Bottom Trim (Riveted)
  • ATP Aluminum Fenders
  • Flo-Thru Vents
  • Framed for Roof Vent
  • 1 Pc. Aluminum Roof
  • 24" Stone Guard
  • 3/4" Drymax Flooring
  • 3/8" Drymax Wall Liner
  • 32" Side Door on 6 & 7 Wides
  • Double Doors or Ramp Door on 6 & 7 Wides
  • Single Rear Door or Ramp on 5 Wides
  • Aluminum Framed Door/s
  • Zinc Door Hardware
  • Aluminum Door Hold Backs
  • L.E.D. Taillights & Bullet Marker Lights (4/Side)
  • 12V L.E.D. Dome Lights w/ Switch (1-SA / 2-TA)
  • D.O.T / C.S.A Approved Safety Equipment
  • 3 Year Structural Warranty
  • 1 Year Limited Warranty




New Discovery Nitro-Lite Aluminum Car Hauler Enclosed Trailers (Aluminum Frame)

Shown with Options: Two Tone Exterior with Bright Divider and 5200 lb Axles
MODEL                         TRAILER SIZE                      PRICE

DNCH8516TA35  8.5x16-78" Interior Height-Spring-#3500x2  $12,495

DNCH8518TA35  8.5x18-78" Interior Height-Spring #3500x2   $13,295

DNCH8520TA35  8.5x20-78" Interior Height-Spring #3500x2   $13,995

DNCH8522TA35  8.5x22-78" Interior Height-Spring #3500x2   $14,695

DNCH8524TA35  8.5x24-78" Interior Height-Spring #3500x2   $15,395

DNCH8526TA52  8.5x26-78" Interior Height-Spring #5200x2   $16,495

DNCH8528TA52  8.5x28-78" Interior Height-Spring #5200x2   $17,095

DNCH8530TA52  8.5x30-78" Interior Height-Spring #5200x2   $18,495

DNCH8532TA52  8.5x32-78" Interior Height-Spring #5200x2   $18,595

                              *Rear Door Opening = 92" W x 79" H



* Wisconsin Sales Tax of 5.5% must be added to each price.



STANDARD FEATURES
  • All Aluminum Tube Frame Construction
  • 2"x 6" Double Hollow Tube Main Frame
  • Aluminum Tube Wall Posts (16" O/C)
  • Aluminum Tube Roof Bows (16" O/C)
  • Aluminum I-Beam Crossmembers (16" O/C)
  • Ramp Door w/  Beavertail
  • Dexter Spring Axle w/ 4" Drop
  • Aluminum Wheels
  • ST205/75R15"Radials on TA35 Models
  • ST225/75R15" Radials on TA52 Models
  • 2-5/16" Coupler w/ Triple Tube A-Frame
  • Flat Top-24" Slanted or Straight Wedge Front
  • .030 Screwless Exterior
  • Brite Aluminum Nose on Wedge
  • Color Matched Rear Corners
  • 3" Top &  Bottom Trim (Riveted)
  • Rear Upper Corner Castings
  • ATP Aluminum Fenders
  • Flo-Thru Vents
  • Framed for Roof Vent
  • 1 Pc. Aluminum Roof
  • 24" Stone Guard
  • 3/4" Drymax Flooring
  • 3/8" Drymax Wall Liner
  • 48" Side Door w/ Stepwell (Aluminum Framed)
  • Zinc Door Hardware
  • Aluminum Door Hold Backs
  • RV Flushlock & Barlock on Side Door
  • (4) 5000# Recessed D-Rings
  • L.E.D. Taillights & Bullet Marker Lights (4/Side)
  • 2-12V L.E.D. Dome Lights w/ Switch
  • D.O.T / C.S.A Approved Safety Equipment
  • 3 Year Structural Warranty
  • 1 Year Limited Warranty




New Discovery Aero-Lite XL Aluminum Snowmobile Enclosed Trailers (Aluminum Frame)

Shown with Options: Two Tone Exterior with Bright Divider and Front Ramp Door on Drivers Side (Ramp Door Not Visible in Photo but is standard option)
MODEL                          TRAILER SIZE                     PRICE

DAXL7.5X17TA2          7.5x17-72" Interior-Spring Axles-3500#x2   $12,495

DAXL7.5X19TA2          7.5x19-72" Interior-Spring Axles-3500#x2   $12,995

DAXL7.5X21TA2          7.5x21-72" Interior-Spring Axles-3500#x2   $13,595

DAXL7.5X23TA2          7.5x23-72" Interior-Spring Axles-3500#x2   $14,095

DAXL7.5X25TA2          7.5x25-72" Interior-Spring Axles-3500#x2   $14,695

DAXL7.5X27TA2          7.5x27-72" Interior-Spring Axles-3500#x2   $15,195

DAXL7.5X27TA2          7.5x29-72" Interior-Spring Axles-3500#x2   $15,695

                                *Front Ramp Opening = 66" W x 62" H

                                *Rear Ramp Opening = 84" W x 69" H



* Wisconsin Sales Tax of 5.5% must be added to each price.



STANDARD FEATURES
  • All Aluminum Tube Frame Construction
  • 2"x 5" Double Hollow Tube Main Frame
  • 60" Slant Wedge Front
  • Aluminum Tube Wall Posts (16" O/C)
  • Aluminum Tube Roof Bows (16" O/C)
  • Aluminum I-Beam Crossmembers (24" O/C)
  • Dexter Spring Axle/s w/ 4" Drop
  • Wide Track Axle
  • ST205/75R15"Radials on Aluminum Wheels
  • 2-5/16" Coupler on TA Models
  • ATP Aluminum Nose
  • Brite Rear Corners
  • 3" Top &  Bottom Trim (Rivited)
  • ATP Aluminum Fenders
  • Plastic Flo-Thru Sidewall Vents
  • Framed for Roof Vent
  • 1 Pc. Aluminum Roof
  • 24" Stone Guard
  • 3/4" Drymax Flooring
  • 0.030 Metal
  • 32" Side Door w/ Barlock
  • Aluminum Framed Side Door
  • Rear Ramp Door
  • Front Ramp Door (Not Visible in Photo as it was located on Drivers Side for this Trailer)
  • 2 Ramp Flaps w/ Side Hinges
  • Aluminum Door Hardware & Holdbacks
  • 3/8'' Drymax Walls
  • LED Taillights & Bullet Marker Lights (4/Side)
  • 2-12V L.E.D. Dome Lights w/ Switch
  • 1-L.E.D Load Light over Ea. Ramp w/ Switch
  • (4) (6) (8) 2500# Surface Mnt. D-Rings (Ship Loose)
  • D.O.T / C.S.A Approved Safety Equipment
  • 3 Year Structural Warranty
  • 1 Year Limited Warranty




New Discovery Aero-Lite SE Aluminum Snowmobile Enclosed Trailers (Aluminum Frame)

MODEL                          TRAILER SIZE                   PRICE

DASE717TA35        7x17-72" Interior-Spring Axles-3500#x2  $10,095

DASE719TA35        7x19-72" Interior-Spring Axles-3500#x2  $10,795

DASE721TA35        7x21-72" Interior-Spring Axles-3500#x2  $11,495

DASE723TA35        7x23-72" Interior-Spring Axles-3500#x2  $12,195

DASE725TA35        7x25-72" Interior-Spring Axles-3500#x2  $12,995

DASE727TA35        7x27-72" Interior-Spring Axles-3500#x2  $13,695

DASE729TA35        7x29-72" Interior-Spring Axles-3500#x2  $14,295

                                 *Front Ramp Opening = 63" W x 62" H

                                 *Rear Ramp Opening = 76" W x 68" H



* Wisconsin Sales Tax of 5.5% must be added to each price.



STANDARD FEATURES
  • All Aluminum Tube Frame Construction
  • 2"x 5" Double Hollow Tube Main Frame
  • 60" Slant Wedge Front
  • Aluminum Tube Wall Posts (16" O/C)
  • Aluminum Tube Roof Bows (16" O/C)
  • Aluminum I-Beam Crossmembers (24" O/C)
  • Dexter Spring Axle/s w/ 4" Drop
  • Wide Track Axle
  • ST205/75R15"Radials on Aluminum Wheels
  • 2-5/16" Coupler on TA Models
  • .030 2-Tone Screwless Exterior  w/ Divider
  • Brite Aluminum Nose
  • Color Matched Rear Corners
  • 3" Top &  Bottom Trim (Rivited)
  • ATP Aluminum Fenders
  • Plastic Flo-Thru Sidewall Vents
  • Framed for Roof Vent
  • 1 Pc. Aluminum Roof
  • 24" Stone Guard
  • 3/4" Drymax Flooring
  • 24"-3/8" Drymax Kick Plate
  • 32" Side Door w/ Flushlock & Barlock
  • Aluminum Framed Side Door
  • Rear Ramp Door
  • Front Ramp Door
  • 2 Ramp Flaps
  • Stainless Steel Door Hardware & Holdbacks
  • L.E.D. Taillights & Bullet Marker Lights (4/Side)
  • 2-12V L.E.D. Dome Lights w/ Switch
  • 1-L.E.D Load Light over Ea. Ramp w/ Switch
  • (4) (6) (9) 2500# Surface Mnt. D-Rings (Ship Loose)
  • D.O.T / C.S.A Approved Safety Equipment
  • 3 Year Structural Warranty
  • 1 Year Limited Warranty




New Discovery Stacker Enclosed Trailers (Steel or Aluminum Frame)

MODEL                                                     TRAILER SIZE                                                PRICE

DCSTT8520TTA5        100" W x 20' L - 133" Interior Height - Spring Axles-7000#x2    Call for Price

DCSTT8522TTA5        100" W x 22' L - 133" Interior Height - Spring Axles-7000#x2    Call for Price

DCSTT8524TTA5        100" W x 24' L - 133" Interior Height - Spring Axles-7000#x3    Call for Price

DCSTT8526TTA5        100" W x 26' L - 133" Interior Height - Spring Axles-7000#x3    Call for Price

DCSTT8528TTA5        100" W x 28' L - 133" Interior Height - Spring Axles-7000#x3    Call for Price

                                 *Rear Ramp Opening = 95" W x 96" H

* Wisconsin Sales Tax of 5.5% must be added to each price.
  • Full custom order options, call for details.
